As modern smartphones, laptops, TVs, and gaming monitors adopt ultra-bright OLED, QD-OLED, and Tandem OLED panels, display visual quality has reached unprecedented fidelity. However, prolonged display of static user interfaces—such as navigation bars, app icons, game HUDs, and desktop taskbars—presents a persistent concern: screen burn-in and temporary image retention. This cornerstone guide breaks down the physical mechanics of burn-in, latest empirical findings from RTINGS multi-year longevity tests, how sub-pixel equalization tools work, and practical methods to protect your screen.

Understanding Screen Burn-In vs. Image Retention

It is vital to distinguish between Temporary Image Retention (TIR) and Permanent Screen Burn-In, as their root causes, physical mechanisms, and recovery options differ fundamentally:

  • Temporary Image Retention (TIR): Common on both LCD screens and newly manufactured OLED panels. Caused by residual capacitive electrical charge trapped across thin-film transistor (TFT) nodes or temporary localized thermal gradients. TIR is 100% reversible and typically dissipates naturally within 15 minutes to 2 hours, or clears rapidly using full-screen dynamic chromatic cycling.
  • Permanent Screen Burn-In: Specific to self-emissive displays (OLED, AMOLED, QD-OLED, Micro-LED). Occurs when organic light-emitting sub-pixels undergo cumulative electro-chemical degradation under sustained electrical drive current and heat. While exhausted organic molecules cannot be physically restored by software, dynamic color-cycling tools can equalize adjacent sub-pixel luminance, substantially softening or eliminating visible ghost outlines.

The Display Tech: OLED, QD-OLED, Tandem OLED & LCD

Display architectures have evolved rapidly to combat uneven pixel wear:

  • Tandem OLED: Introduced in flagship tablets and laptops (such as Apple's M4 iPad Pro and premium ultrabooks). By stacking two organic emissive layers in series, Tandem OLED cuts the electrical current density per layer by half while doubling peak brightness, extending panel lifespan up to 4x compared to conventional single-layer OLEDs.
  • QD-OLED & WOLED with MLA: Samsung Display's Quantum Dot OLEDs and LG Display's White-OLEDs equipped with Micro Lens Array (MLA+) boost optical light extraction efficiency. This permits lower driving currents and cooler operating temperatures, directly reducing the primary catalysts of differential wear.
  • LCD / IPS Panels: Utilize a continuous LED or Mini-LED backlight passing through liquid crystal molecules. Because liquid crystals do not self-emit light or contain organic light-emitting compounds, IPS and LCD panels are physically immune to permanent organic burn-in.

Latest RTINGS Multi-Year Display Test Findings

The definitive empirical benchmark for screen burn-in is the multi-year accelerated longevity test conducted by RTINGS, which stress-tests over 100 OLED, QD-OLED, and LCD TVs and monitors across thousands of continuous hours of static content (including CNN news tickers, sports scoreboards, and desktop layouts). Several critical technical conclusions have emerged from their long-term data:

  • Luminance and Heat Are the Primary Accelerants: Panels driven at maximum brightness in warm ambient conditions experience exponential increases in sub-pixel degradation rate compared to panels operated at moderate 150–200 nit levels. Heatsinks integrated behind modern OLED panels significantly slow down localized wear.
  • Automated Compensation Cycles Are Essential: Modern OLED displays run short pixel refresh cycles (after every 4 hours of cumulative usage during standby) and major compensation cycles (every 1,500–2,000 hours). These cycles measure electrical resistance variations across sub-pixels and recalibrate driving voltages to maintain uniform luminance. Unplugging displays from wall outlets prevents these background cycles from executing, accelerating visible burn-in.
  • Differential Aging Over Thousands of Hours: Even with compensation algorithms, displays subjected to relentless static banners (like cable news lower-thirds) eventually exhaust the voltage headroom available to boost degraded sub-pixels, producing visible differential boundary contours.

Why Screen Burn-In Occurs (Sub-Pixel Degradation Physics)

Every pixel in an OLED display consists of separate Red (R), Green (G), and Blue (B) organic sub-pixels. Blue sub-pixels have the highest bandgap energy and lowest luminous efficiency, requiring higher drive currents to achieve target brightness. Consequently, blue sub-pixels age faster than red and green counterparts under sustained loads.

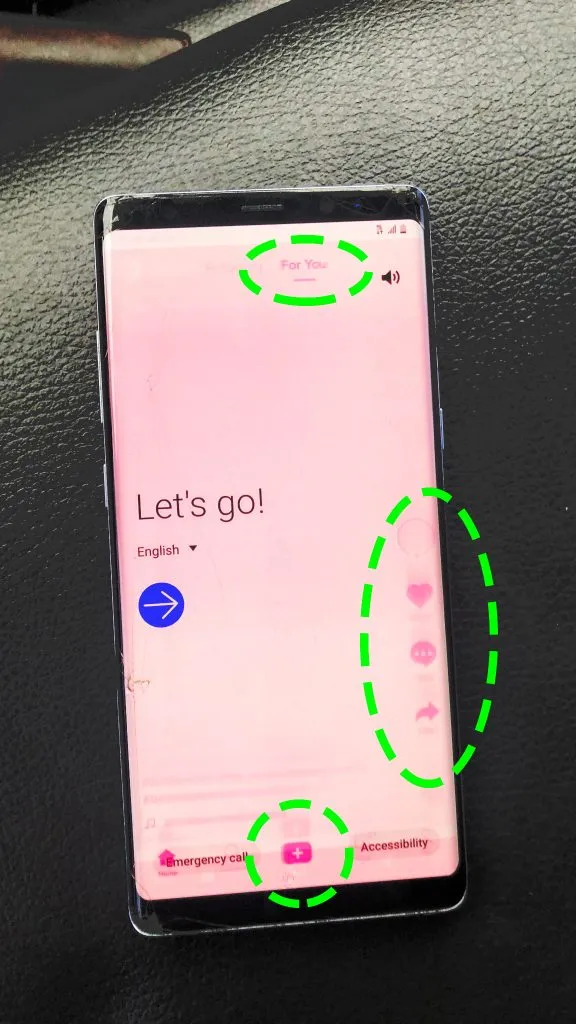

When static UI elements—such as white icons, status bars, or video game HUDs—remain in a fixed screen position for hundreds of hours, the underlying sub-pixels sustain continuous high-current stress. Over time, these specific sub-pixels suffer a minor drop in peak luminance. When the display subsequently presents a uniform gray or colored background, the human eye instantly detects the sharp step-function contrast boundary between the worn sub-pixels and their pristine neighbors, perceiving it as a persistent ghost watermark.

Sub-Pixel Equalization Mechanics: How Software Tools Work

A common question is: Can software restore degraded organic chemical compounds? The honest technical answer is no—software cannot physically replace decomposed organic molecules. However, software repair tools perform two crucial corrective functions:

  1. Neutralizing TFT Capacitive Charge Trapping: Rapid, high-frequency chromatic cycling alternates voltage polarities across the backplane at high frame rates, forcing trapped electrostatic charges to disperse and returning liquid crystal or OLED drive circuits to neutral equilibrium within 20–60 minutes.
  2. Sub-Pixel Wear Equalization: By generating full-screen, high-intensity complementary chromatic cycles and dynamic noise, the tool stimulates surrounding, under-utilized sub-pixels. This smooths out the sharp edge gradient between burned-in pixels and adjacent fresh pixels. When the sharp boundary transition is graduated across surrounding pixels, the human visual cortex can no longer distinguish the ghost silhouette on uniform backgrounds.

Fixing Screen Burn-In: Software Remedies & Tool Usage

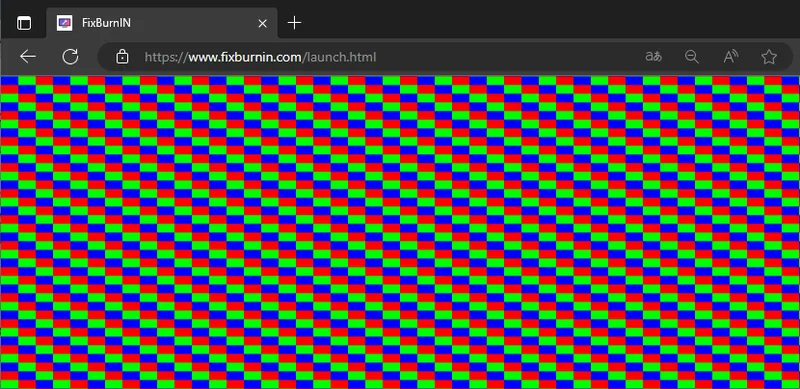

To clear image retention and smooth out ghost outlines, try our free Online Screen Burn-In Fix Tool directly in your browser without downloading any software or extensions.

Recommended Tool Usage Steps

  1. Open the Fix Tool Page on your target device (Smartphone, Tablet, Laptop, Monitor, or Smart TV browser).
  2. Set your device screen brightness to 80%–100%.
  3. Enter full-screen mode (press F11 on desktop or tap the full-screen button on mobile) to hide browser toolbars.
  4. Allow the dynamic chromatic cycling to run for 30 to 60 minutes for mild retention, or run multiple 1–2 hour sessions for deeper sub-pixel equalization.
  5. Inspect the screen using solid color backgrounds (50% Gray, Red, Green, Blue) to verify visual improvement.

Preventing Screen Burn-In: Best Practices & OS Settings

  • Auto-Hide Static Taskbars & Docks: On Windows 11 and macOS, enable "Automatically hide the taskbar / dock". Fixed taskbar lines and system tray clocks represent the leading source of desktop OLED burn-in.
  • Never Interrupt Pixel Refresher Cycles: Leave OLED monitors and TVs connected to standby power so built-in 4-hour and 2,000-hour compensation routines can complete when the display is idle.
  • Enable OS Pixel Shifting: Keep pixel shift enabled in your display or monitor OSD. It shifts static graphics by 1–2 pixels imperceptibly every few minutes to spread luminance wear.
  • Utilize Dark Mode & Auto-Brightness: Dark themes turn off OLED sub-pixels completely (0 nits), while Auto-Brightness avoids running excessive peak luminance in dim rooms.
  • Configure Short Screen Sleep Timeouts: Set display sleep to 1–3 minutes of inactivity to prevent accidental static exposure when walking away.

In conclusion

While organic sub-pixel degradation is a physical reality of self-emissive panels, modern display engineering—including Tandem OLED architectures, heatsink thermal dissipation, and intelligent compensation cycles—has dramatically expanded panel lifespans. By adopting proactive operating habits and utilizing browser-based dynamic color tools at fixburnin.com/launch/ whenever ghosting appears, you can maintain pristine visual clarity for years to come.
