When reviewing smartphone screen specifications, you frequently encounter terms like E4, E5, E6, alongside cutting-edge flagship designations like M12, M13, and M14. These designations denote Samsung Display's proprietary organic luminescent material sets. While resolution and refresh rate get the headlines, the underlying emissive material set dictates your screen's peak brightness, thermal efficiency, color gamut, and critically, its resistance to permanent screen burn-in.
Understanding OLED Luminescent Material Sets
An OLED display is composed of microscopic stacks of organic thin films: the Hole Injection Layer (HIL), Hole Transport Layer (HTL), Emissive Layer (EML), Electron Transport Layer (ETL), and Electron Injection Layer (EIL). The chemical formulation of the organic host and dopant molecules in the EML determines how efficiently electrical excitons are converted into visible photons.
Samsung Display organizes its material innovations into two distinct commercial tiers:

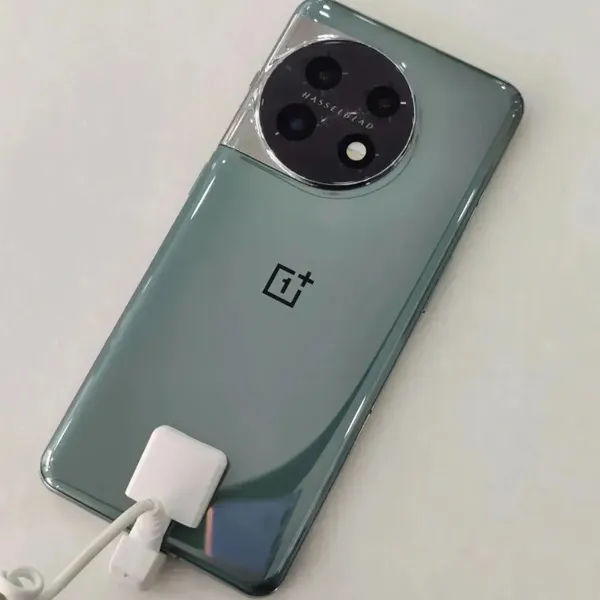

- The E-Series (E3, E4, E5, E6): Commercial material sets sold to external smartphone manufacturers (including Xiaomi, Vivo, iQOO, OnePlus, and Realme) for premium and upper mid-range devices.
- The Flagship M-Series (M11, M12, M13, M14): Samsung Display's most advanced, top-tier organic formulation, strictly reserved for Tier-1 flagship partnerships—chiefly Apple's Pro iPhones, Samsung Electronics' Galaxy S Ultra flagships, and Google's Pixel Pro series.
The E-Series Journey: E4, E5, and E6
The transition across the E-series represents rapid engineering iterations addressing luminous efficiency and directional light extraction:
- Samsung E4 Material (2020–2021): E4 was a celebrated benchmark. Delivering 1300 nits local peak brightness and 800 nits global brightness, E4 offered exceptional color stability, uniform viewing angles, and native DC-dimming compatibility on non-LTPO implementations. Because it did not rely on aggressive optical microprisms, E4 had almost zero off-axis tinting.
- Samsung E5 Material (2021–2022): To push brightness to 1500 nits, Samsung introduced a microprism array above the emissive layer. The microprisms concentrated forward-directed light rays, increasing head-on luminous efficiency. However, this came with a noticeable trade-off: severe off-axis color shifts (rainbow-like green/blue tinting) and degraded viewing angles that polarized consumers.

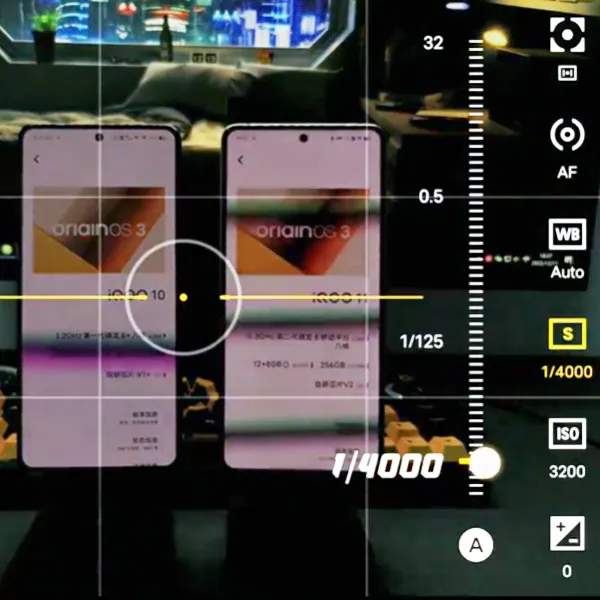

- Samsung E6 Material (2022–2023): E6 refined the organic dopants to achieve 1800–2000 nits peak brightness and cut overall power consumption by roughly 20% compared to E4. Critically, Samsung restructured the optical layer to mitigate the harsh viewing angle color shifts introduced by E5, making E6 a dominant choice on flagships like the Xiaomi 13 and iQOO 11.
The Flagship M-Series Transition: M11 to M14
While the E-series was widely marketed across tech forums, Samsung Display's proprietary M-series pushed mobile display performance to the true technological frontier:
- M11 & M12 Material Sets: Utilized in the Samsung Galaxy S22/S23 Ultra and Apple iPhone 14 Pro / 15 Pro, M12 surpassed 2000 nits peak HDR luminance while maintaining strict Delta-E color accuracy and excellent thermal control.
- M13 Material Set (2024): Featured in the Samsung Galaxy S24 Ultra and Google Pixel 8 Pro. M13 achieved an extraordinary 2600 nits peak brightness, paired with LTPO 1–120Hz variable refresh rate technology and upgraded blue emitter efficiency, slashing high-brightness power draw.
- M14 Material Set (2024–2026 Flagship Standard): Debuting on the Google Pixel 9 Pro and Pixel 9 Pro XL, as well as the iPhone 16 Pro Max, M14 represents the absolute zenith of Samsung Display engineering. M14 achieves an astonishing 3000 nits peak brightness while offering a 20–30% boost in luminous efficiency over M13. Furthermore, M14 establishes a new benchmark for panel longevity and thermal resilience.
Deuterium Heavy Hydrogen: The Cure for Blue Emitter Burn-in

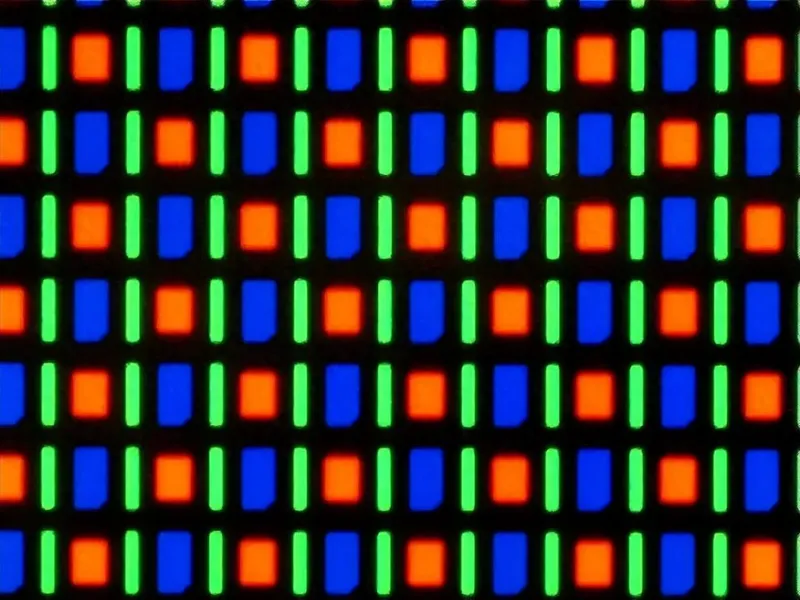

The single greatest historic vulnerability of OLED screens has always been differential subpixel aging—commonly known as screen burn-in. And in every OLED display, the blue subpixel is the weakest link.
Blue photons carry significantly higher quantum energy (~2.8 to 3.1 electron-volts) compared to red (~1.8 eV) or green (~2.2 eV) photons. In conventional organic blue emitters, the high electrical excitation required to produce intense blue light causes the chemical bonds between Carbon and Hydrogen (C–H bonds) to oscillate violently. Over thousands of hours of high-brightness operation, these C–H bonds dissociate, breaking down the molecular lattice, quenching excitons, and permanently diminishing luminance output.
How Deuterium Enhancement Solves the Problem:
- Kinetic Isotope Effect: In the modern M-series (pioneered in M13/M14) and contemporary flagship OLED panels, chemical engineers replace ordinary light hydrogen (protium, 1H) with deuterium (heavy hydrogen, 2H) in the blue emitter host and dopant compounds.
- Stronger Carbon-Deuterium (C–D) Bonds: Because deuterium possesses twice the mass of standard hydrogen, the vibrational zero-point energy of the C–D bond is markedly lower. This creates a much stronger, more stable chemical bond with higher dissociation energy.
- Doubled to Tripled Blue Lifespan: Deuterium-substituted blue emitters withstand extreme thermal and electrical stress without breaking down. This technological breakthrough doubles or triples the functional half-life (T50) of the blue subpixel, virtually neutralizing blue-aging color shifts and dramatically increasing the screen's resistance to permanent burn-in even when sustaining 2500–3000 nits HDR highlights.
Summary & Material Comparison Matrix
The progression of Samsung Display's mobile luminescent materials is summarized below:
| Material Set | Peak Brightness | Luminous Efficiency | Viewing Angle Stability | Blue Stack Chemistry | Representative Devices |
|---|---|---|---|---|---|
| Samsung E4 | ~1300 nits | Baseline | Excellent (No microprism) | Standard fluorescent C-H blue | OnePlus 9RT, Redmi K40, Realme GT Neo 2 |
| Samsung E5 | ~1500 nits | +15% vs E4 | Fair (Noticeable off-axis rainbow shift) | Standard fluorescent C-H blue | iQOO 9 Pro, Vivo X80 Pro |
| Samsung E6 | ~1800–2000 nits | +20% vs E5 | Good (Optimized microprism) | Refined fluorescent blue | Xiaomi 13 / 13 Pro, iQOO 11, Vivo X90 Pro+ |
| Samsung M11 / M12 | ~1750–2000 nits | High Flagship Tier | Superior wide-angle color | High-purity dopants | iPhone 14 Pro, iPhone 15 Pro, Galaxy S23 Ultra |
| Samsung M13 | ~2600 nits | +15% vs M12 | Near-perfect uniformity | Early deuterium-stabilized blue | Galaxy S24 Ultra, Pixel 8 Pro |
| Samsung M14 | ~3000 nits | +20–30% vs M13 | Flawless viewing stability | Full deuterium-enhanced blue matrix | Google Pixel 9 Pro / XL, iPhone 16 Pro Max |
How to Check Your OLED Display Health
Regardless of whether your smartphone features an E-series or flagship M-series panel, real-world longevity depends on software management, thermal exposure, and usage habits. If you notice uneven subpixel wear, static status bar silhouettes, or slight color balance drift, you can easily diagnose and refresh your panel using our free Interactive Screen Burn-in & Diagnostics Tool.
